Bank Management

Dynamics GP – Stranded records in PM20200 causing Invoices to go to History incorrectly when applying payments in Bank Management

Gavin WhittakerLeave a comment

The Issue

When a user was creating payables payments in the bank management module via “Transactions > Financial > Bank Management > Batches > Payments” they found that when they applied an invoice the invoice would go straight to HISTORY even though the payment hadn’t yet been posted.

As a consequence when the user did post the batch the payment hits the bank management module correctly, but then fails to post through the payables tables.

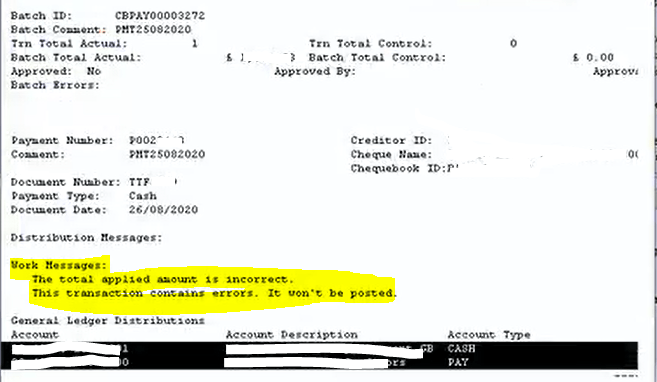

The error below is reported on the edit list and the payment remains in the WORK tables in payables, in a system generated batch prefixed CBPAY, and the invoices go to HISTORY with incomplete apply records:

This happened every time they applied a payment in the bank management module using the option mentioned above.

The root cause

On investigation I found stranded records in the PM20200 (PM Distribution OPEN OPEN Temporary File) table with the users ID in the KEYSOURC column causing the issue.

Therefore to fix the issue I just deleted these records and this prevented the issue. (always ensure no one is in the system and you have a full backup prior to deleting any data)

Fixing the aftermath

To fix the data so the payment could be posted and applied to the invoices, I had to first correct the payment and then transfer the invoices back to OPEN.

** Please note if you have encountered this issue your data fix may be slightly different. Therefore prior to running any DELETE or UPDATE statements first run SELECT statements to ensure you are deleting or updating the right data and above all always ensure you have a good backup of your data.

I first fixed the payment by running the following SQL statements to update the apply amounts:

UPDATE PM10400 SET APPLDAMT=0, CURTRXAM=DOCAMNT WHERE PMNTNMBR='<payment number>'

Next I transferred the invoice back to OPEN and removed the HISTORY records using the steps below:

--Insert into PM Open

INSERT INTO PM20000

(VCHRNMBR,VENDORID,DOCTYPE,DOCDATE,DOCNUMBR,DOCAMNT,CURTRXAM,DISTKNAM,DISCAMNT,DSCDLRAM,BACHNUMB,TRXSORCE,BCHSOURC,DISCDATE,DUEDATE,PORDNMBR,TEN99AMNT,WROFAMNT,DISAMTAV,TRXDSCRN,UN1099AM,BKTPURAM,BKTFRTAM,BKTMSCAM,VOIDED,HOLD,CHEKBKID,DINVPDOF,PPSAMDED,PPSTAXRT,PGRAMSBJ,GSTDSAMT,POSTEDDT,PTDUSRID,MODIFDT,MDFUSRID,PYENTTYP,CARDNAME,PRCHAMNT,TRDISAMT,MSCCHAMT,FRTAMNT,TAXAMNT,TTLPYMTS,CURNCYID,PYMTRMID,SHIPMTHD,TAXSCHID,PCHSCHID,FRTSCHID,MSCSCHID,PSTGDATE,DISAVTKN,CNTRLTYP,NOTEINDX,PRCTDISC,RETNAGAM,ICTRX,Tax_Date,PRCHDATE,CORRCTN,SIMPLIFD,BNKRCAMT,APLYWITH,Electronic,ECTRX,DocPrinted,TaxInvReqd,VNDCHKNM,BackoutTradeDisc,CBVAT,VADCDTRO,TEN99TYPE,TEN99BOXNUMBER)

SELECT

VCHRNMBR,VENDORID,DOCTYPE,DOCDATE,DOCNUMBR,DOCAMNT,CURTRXAM,DISTKNAM,DISCAMNT,DSCDLRAM,BACHNUMB,TRXSORCE,BCHSOURC,DISCDATE,DUEDATE,PORDNMBR,TEN99AMNT,WROFAMNT,DISAMTAV,TRXDSCRN,UN1099AM,BKTPURAM,BKTFRTAM,BKTMSCAM,VOIDED,HOLD,CHEKBKID,DINVPDOF,PPSAMDED,PPSTAXRT,PGRAMSBJ,GSTDSAMT,POSTEDDT,PTDUSRID,MODIFDT,MDFUSRID,PYENTTYP,CARDNAME,PRCHAMNT,TRDISAMT,MSCCHAMT,FRTAMNT,TAXAMNT,TTLPYMTS,CURNCYID,PYMTRMID,SHIPMTHD,TAXSCHID,PCHSCHID,FRTSCHID,MSCSCHID,PSTGDATE,DISAVTKN,CNTRLTYP,NOTEINDX,PRCTDISC,RETNAGAM,ICTRX,Tax_Date,PRCHDATE,CORRCTN,SIMPLIFD,0,APLYWITH,Electronic,ECTRX,DocPrinted,TaxInvReqd,VNDCHKNM,BackoutTradeDisc,CBVAT,VADCDTRO,TEN99TYPE,TEN99BOXNUMBER

FROM PM30200 WHERE VCHRNMBR IN ('<Invoice Voucher Numbers>')

--Delete from History Table

DELETE FROM pm30200 WHERE VCHRNMBR IN ('<Invoice Voucher Numbers>')

--Update Current Transaction Amount

UPDATE PM20000 set CURTRXAM= DOCAMNT WHERE VCHRNMBR IN ('<Invoice Voucher Numbers>')



--Insert Distributions back into Open

INSERT INTO PM10100

(VCHRNMBR,DSTSQNUM,CNTRLTYP,CRDTAMNT,DEBITAMT,DSTINDX,DISTTYPE,CHANGED,USERID,PSTGSTUS,VENDORID,TRXSORCE,PSTGDATE,INTERID,CURNCYID,CURRNIDX,ORCRDAMT,ORDBTAMT,APTVCHNM,APTODCTY,SPCLDIST,DistRef,RATETPID,EXGTBLID,XCHGRATE,EXCHDATE,TIME1,RTCLCMTD,DECPLACS,EXPNDATE,ICCURRID,ICCURRIX,DENXRATE,MCTRXSTT,CorrespondingUnit)

SELECT

VCHRNMBR,DSTSQNUM,CNTRLTYP,CRDTAMNT,DEBITAMT,DSTINDX,DISTTYPE,CHANGED,USERID,PSTGSTUS,VENDORID,TRXSORCE,PSTGDATE,'ACAL2',CURNCYID,CURRNIDX,ORCRDAMT,ORDBTAMT,APTVCHNM,APTODCTY,SPCLDIST,DistRef,'','',1,'1900-01-01 00:00:00.000','1900-01-01 00:00:00.000',0,2,'1900-01-01 00:00:00.000','GBP',1014,0,0,''

FROM PM30600 WHERE VCHRNMBR IN ('<Invoice Voucher Numbers>')

--Delete dists from hist

DELETE FROM PM30600 WHERE VCHRNMBR IN ('<Invoice Voucher Numbers>')

--Update Key Record

UPDATE PM00400 set DCSTATUS=2 where CNTRLNUM IN ('<Invoice Voucher Numbers>')

-- Insert tax records back to PM10500

INSERT INTO pm10500
(VENDORID,VCHRNMBR,DOCTYPE,BACHNUMB,TAXDTLID,BKOUTTAX,TAXAMNT,ORTAXAMT,PCTAXAMT,ORPURTAX,FRTTXAMT,ORFRTTAX,MSCTXAMT,ORMSCTAX,ACTINDX,TRXSORCE,TDTTXPUR,ORTXBPUR,TXDTTPUR,ORTOTPUR,CURRNIDX,POSTED)

SELECT
VENDORID,VCHRNMBR,DOCTYPE,BACHNUMB,TAXDTLID,BKOUTTAX,TAXAMNT,ORTAXAMT,PCTAXAMT,ORPURTAX,FRTTXAMT,ORFRTTAX,MSCTXAMT,ORMSCTAX,ACTINDX,TRXSORCE,TDTTXPUR,ORTXBPUR,TXDTTPUR,ORTOTPUR,CURRNIDX,1
FROM PM30700 WHERE VCHRNMBR IN ('<Invoice Voucher Numbers>')

--Delete hist tax records from pm30700

DELETE PM30700 WHERE VCHRNMBR IN ('<Invoice Voucher Numbers>')

-- Delete History Applies

DELETE FROM PM30300 WHERE APTVCHNM IN ('<Invoice Voucher Numbers>')

Once I had completed these steps I could post the payment and apply to the invoices.

Thanks for reading!

Dynamics GP – Bank Management button missing from Chequebook Maintenance window

Gavin WhittakerLeave a comment

Only a short post however I thought I’d blog this one as its a frequent query we receive on the Bank Management module in Dynamics GP.

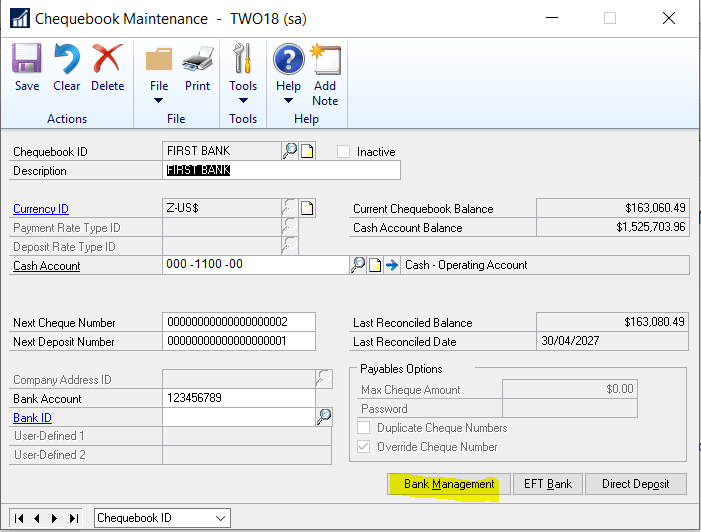

Clients who have the “Bank Management” module for Dynamics GP will often create a new chequebook via “Cards > Financial > Chequebook” and notice the “Bank Management” option isn’t immediately visible to add the additional setup:

This is because you first need to grant access to the users in the bank management module and then you see the option.

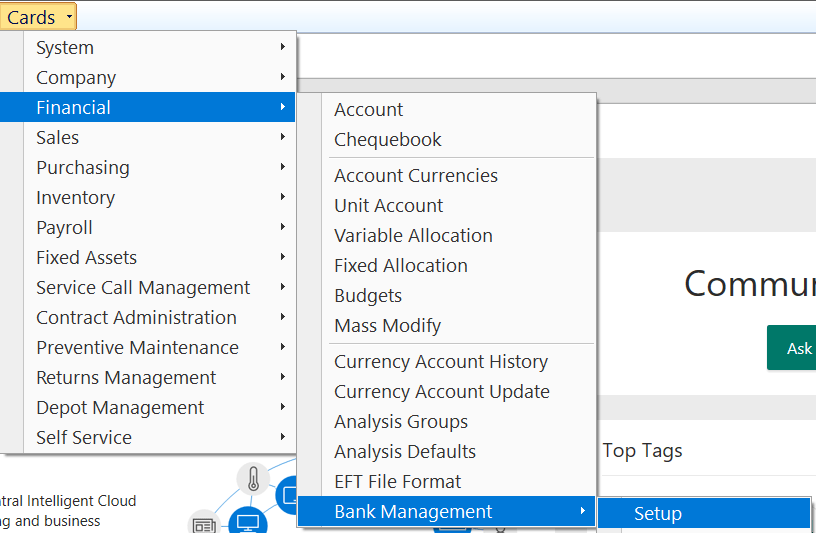

You grant access via “Cards > Financial > Bank Management > Setup”

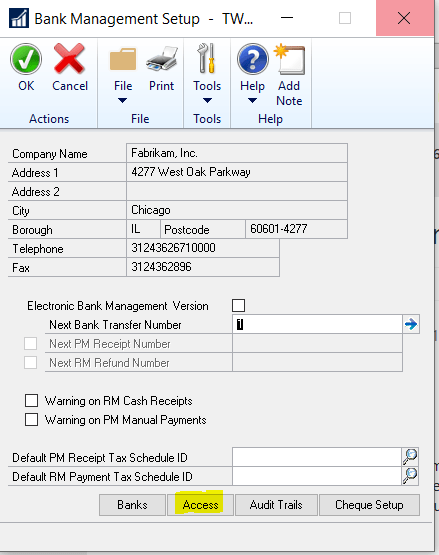

Once in the Bank Management Setup window click “Access”

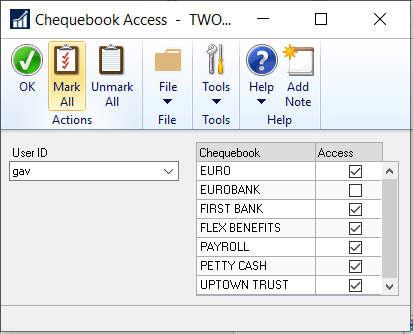

Once in the Access window pickup the relevant users and grant them access to the new chequebook:

Once this has been granted the “Bank Management” option is visible on the chequebook in the “Cards > Financial > Chequebook” window.

Hope this helps someone else in the future.

Thanks for reading.

Dynamics GP – Clear Activity in Bank Management – Delete from CBEU1020

Featured1 Comment

I recently had an issue where a user was stuck in a batch in the Bank Management module. You can usually run the “Clear Activity” option to resolve the issue however on this occasion it didn’t work. I found I had to manually delete a row in an SQL table to clear the lock and allow the user access to the batch.

The exact issue they received is as follows:

With this error message the first thing to try is to clear activity and although this didn’t work on this occasion I’ll detail the steps below.

Select “Tools > Routines > Financial > Bank Management > Clear Activity”

Select “Clear Activity”

Ensure there are no users in Dynamics GP and click “Yes” to the message below. (rather than asking everyone to log out I usually just ensure there’s nobody doing any Bank Management activities)

After doing this you will be prompted with the message below confirming activity is cleared

However I found I still couldn’t access the batch. On investigation there is still some activity for the batch in the CBEU1020 table which needed clearing. I therefore ran the SQL query below in the company database to delete the row. (replace TWO18 with the name of your company database)

I could then access the batch.

Thanks for reading
