Brief overview and comparison of how summary values are stored and calculated in Dynamics GP, Dynamics NAV and Dynamics 365 Business Central


There was an interesting conversation on twitter over the weekend with regards summary values and Dynamics 365 Business Central. Much like myself the person asking the question came from a Dynamics GP background and was wondering where in the database Dynamics 365 Business Central stored summary values i.e. GL period balances.

Now this is one area of the system that I really like about Dynamics NAV and Dynamics 365 Business Central so I thought I’d write this up.

The Dynamics GP way

Dynamics GP stores summary values in a variety of different summary tables. For example the GL open years transactional data is stored in one table (GL20000) and its summarised in a summary balance table (GL10110).

This means you can quickly access the summary values in an enquiry window. For example below is a GL enquiry window showing the GL period balances for a cash account.

What’s great is as this window is accessing a summary table rather than summing and sub totalling the main transaction table the performance is great, so you have access to summary data very quickly. i.e. you could 10 million rows of transactional data for this GL code but its all nicely summarised into a handful of rows in the summary table.

As I mentioned this provides fantastic performance however anyone who has worked with Dynamics GP for any length of time will realise the one issue that comes with storing data in this way. Unfortunately if there is an issue when posting a transaction “sometimes” the summary values aren’t updated and therefore they become “out of sync” with the actual transaction data i.e. if you were to manually sum the transaction data it wouldn’t match the summary data. This can cause problems and prompt awkward conversations with clients as they (understandably) ask “why” this is the case, and (even worse) how they can prevent this in the future. (I hate it when this question crops up)

*** A wider discussion here would be why Dynamics GP doesn’t update all the SQL tables (transaction table and summary table) using one SQL transaction which would negate this issue however that is beyond of the scope of this article.

To compensate for this Dynamics GP has “reconcile” features for nearly all ledgers so you can re-align the summary balances with the actual transactions. For example below is the “reconcile” utility for the General Ledger. Running this will recalculate all the summary balances based on the transactional data and update the summary table I mentioned earlier.

The Dynamics NAV \ Dynamics 365 Business Central way

The first thing to say is that Dynamics NAV and Dynamics 365 Business Central doesn’t store summary values in specific SQL tables like Dynamics GP. Instead it uses something called “Flow fields” for the summary totals which are implemented using SQL Indexed views. (therefore technically the summary values are materialised in the database just not in actual SQL tables). In the Dynamics NAV and Dynamics 365 Business Central world they are referred to as SIFT Indexes.

So for example, when you view the GL balances in Dynamics NAV as per the screen shot below the system is running queries using the SQL indexed views to present the summary values and therefore performance is still extremely good. (technically its the SQL optimiser that will choose to use this index when asked to return the summary values for this page because its much more efficient)

Digging a little deeper if you go into the Dynamics NAV development environment you can see how the SQL indexed views (SIFT Indexes) are implemented.

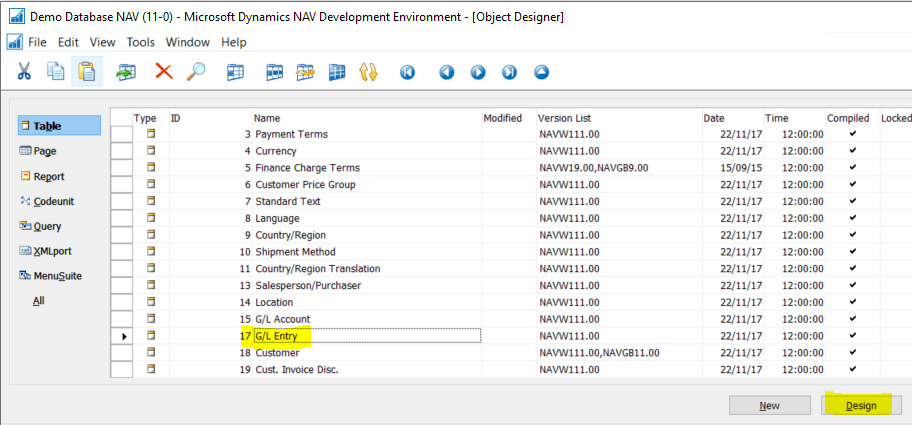

For example if I select the GL entry table and click “Design”

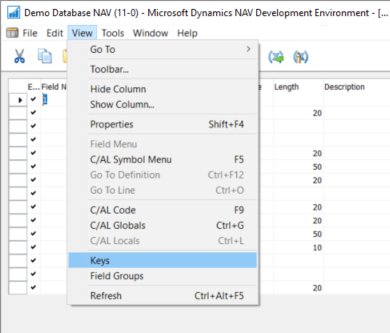

And then select “View > Keys” to look at the indexes

You can now see the keys (Indexes) on the left and some of the keys have an associated “SumIndexField” (i.e. a SIFT Index which is implemented via a SQL Indexed View). In the highlighted example an SQL indexed view is created summing the fields Amount, Debit Amount, Credit Amount, Additional-Currency Amount, Add.-Currency Debit Amount, Add.-Currency Credit Amount and grouping by GL Account No and Posting Date.

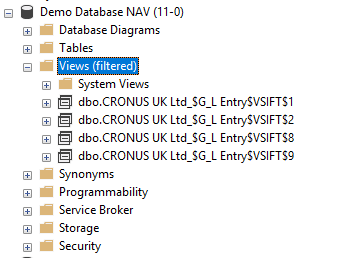

Therefore if I open SQL Management Studio and browse to my Dynamics NAV database I can see all the SQL indexed views on the GL Entry table (there are four which matches the number of enabled keys with SumIndexFields columns in my development environment)

Finally if I take a look at the definition of the SQL indexed view named “CRONUS UK Ltd_$G_L Entry$VSIFT$1” we can see this is implementing the key that I highlighted earlier

WITH schemabinding
SELECT “17”.”g_l account no_”,
“17”.”posting date”,
Count_big(*) AS “$Cnt”,
Sum(“17″.”amount”) AS “SUM$Amount”,
Sum(“17″.”debit amount”) AS “SUM$Debit Amount”,
Sum(“17″.”credit amount”) AS “SUM$Credit Amount”,
Sum(“17″.”additional-currency amount”) AS
“SUM$Additional-Currency Amount”,
Sum(“17″.”add_-currency debit amount”) AS
“SUM$Add_-Currency Debit Amount”,
Sum(“17″.”add_-currency credit amount”) AS
“SUM$Add_-Currency Credit Amount”
FROM dbo.”cronus uk ltd_$g_l entry” “17”
GROUP BY “17”.”g_l account no_”,
“17”.”posting date”

I suppose you could argue the one draw back on this is that whenever a transaction is posted in Dynamics NAV and Dynamics 365 Business Central then SQL has extra CPU and disk work to do as it maintains the SQL indexed views associated with the transaction tables.


Although I love so many things about Dynamics GP I do think Dynamics NAV and Dynamics 365 Business Central has the edge here. By allowing the database to handle the maintenance of summary values through the implementation of SQL indexed views the data can never go out of sync with the summary values.

Thanks for reading.

Dynamics GP – Odd issue using a DNS Alias for the SQL Server resulting in the error – No Obligations found on VAT Return

A colleague and I worked on a very interesting support ticket today. A client reported that when logging into Dynamics GP using their own Dynamics GP User ID they received the error “No Obligations Found” when retrieving the obligations for the VAT Return however it worked fine when logged in as “sa”.

**Please note there has been a service pack to correct this exact issue however this has been applied to the clients system so it can’t be causing this issue**.

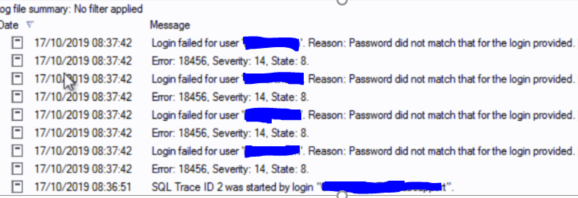

As this worked with “sa” we checked the SQL Error log and surprisingly we found the following messages recorded at the time the routine had been ran:

As you can see the error log is scattered with “Login failed for user” messages for the user in the question.

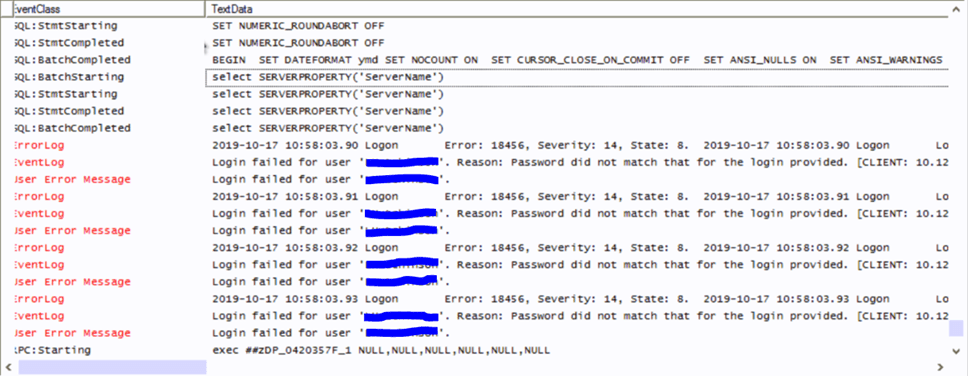

The next part of the investigation was to setup a SQL Profile Trace to see what SQL statements were running just prior to the login failed message and we found the following:

As you can see the SQL statement “select SERVERPROPERTY(‘ServerName’)” runs just prior to the login failed errors.

My colleague then recalled they are using a DNS Alias for the SQL server name in the ODBC connection rather than the actual SQL server name.

We therefore ran “select SERVERPROPERTY(‘ServerName’)” on the server and, as expected, this returns the actual SQL server name rather than the alias name that is used in the server name in the ODBC connection on the clients PC.

Intrigued that the issue could somehow be related to how GP encrypts passwords using the SQL server name we setup the following test:

  1. Created an additional ODBC connection on the clients PC pointing to the actual SQL server name rather than DNS Alias name.
  2. Logged into Dynamics GP as “sa” using this new ODBC and created a new GP user, copying the security of the existing user. (so the password gets encrypted using the actual SQL server name)
  3. Finally, we logged into GP using the new ODBC and the new GP user.

After successfully logging in using the new user, and the ODBC pointing at the actual SQL server name, we walked through retrieving the obligations and the whole process worked. We also checked the SQL error log and there were no “Login Failed” error messages for the user.

I have to admit at this point I’m guessing as to what is going on however based on the results of this isolated test I can only assume that somehow during this process the users Dynamics GP credentials are being re-submitted to SQL using the actual SQL server name, and as the users password is encrypted with the SQL server DNS Alias name, its failing with “Login failed”. This works when logged in as “sa” because this is the only User ID that doesn’t have its password encrypted by GP. (its not encrypted because its the SQL System Administrator account)

Therefore although using a DNS alias can help with server changes (ironically because of how GP encrypts the password), this has got us thinking that using a DNS Alias for the SQL server could be causing other issues with GP that we don’t know about, so we may avoid this in the future if we can.

After discovering this little oddity I’d be interested if anyone else has any other experience of issues when using a DNS Alias for the SQL server.

Disclaimer :- I’d usually attempt to recreate this type of issue on my own system before documenting and sharing however I can’t in this instance as I don’t have an account with HMRC to complete the full process. However given how interesting this does seem I thought it worthwhile sharing anyway.

Thanks for reading.
